High Performance Train Interior

Leading in train interior technology

In the early years of this century, our roots originated in the train industry. As a manufacturer of traditional interior systems, we created a solid foundation for our company. In recent years, we have transformed our company into a successful and innovative manufacturer of lightweight interior systems. Our TABB honeycomb system has proven to be an excellent durable interior system for modern lightweight high-speed trains in already executed projects. Because train set lifetimes are budgeted at 40 years, train operators are looking for an interior with a high-quality structure. In addition, weight reduction is an increasingly important issue for them to reduce energy costs and wear and tear on moving parts. The TABB system excels in both criteria: excellent material specifications guarantee higher durability and it is lightweight compared to traditional interior systems.

For train manufacturers, the TABB system has advantages: its innovative technology makes it easy to install and requires fewer assembly operations than traditional systems. No wonder railroad companies are enthusiastic about the total cost of ownership of newly purchased trains with a TABB interior.



The TABB honeycomb system is perfect for ceilings, partitions, doors and train furniture

ceiling system

Ceiling systems

A ceiling is not just a sheet covering the inside of a coach. It is also the support for many technical systems, such as climate systems, lighting systems, sound systems and vision systems. Moreover, it has to be capable to give access to the technical areas behind the ceiling. The ceiling as a system must therefore be a cover, a carrier and movable. The TABB honeycomb system integrates all these functions and, due to the lightness of the material, is easy to handle with a minimum of force.

ceiling system

Partition & entrance systems

Partitions and doors must be able to withstand great forces and shocks during very intensive use. In an environment exposed to vibration and shock, panels must be stiff and stable to avoid jammed doors. Partitions are often used to attach video screens, control panels, handles, luggage racks or tables and folding chairs. With the stiff and stable TABB honeycomb system you can easily integrate all these items.

furniture lugage rack

Furniture

Furniture demands a polished finish with soft materials, smooth edges and curved surfaces. With our extensive knowledge of adhesives, we can attach any soft material to our panels. With special techniques, we are also able to bend our panels with just one degree to a right angle. The TABB honeycomb system is therefore very suitable for any furniture in a coach such as desks, cabinets, cupboards and control desks.

Projects

SBB TWINDEXX

Client: ALSTOM TRANSPORTATION
Description: Double Deck Intercity Trains – SBB (Swiss Railways)
Project start: 2012
Number of trains: 62
Number of cars: 1236
Scope of supply: partitions, train captain area, central ceilings, side ceilings

Project description:

In 2010 The Swiss Federal Railways (SBB) awarded Alstom the largest rolling stock order in the train builder’s history: 62 Twindexx double-decker trains to serve the routes between Geneva-Lausanne and Lausanne-Bern. The contract includes options for more than 100 additional Twindexx

SBB TWINDEXX

Client: ALSTOM TRANSPORTATION SA
Description: Single Deck Interregional Trains – SJ (Swedish Railways)
Project Start: 2009
Number of trains: 99
Number of cars: 396
Scope of supply: curved doors for disabled toilets

Project description:

X61 is the name of the Alstom Coradia Nordic railcar which was ordered by Skånetrafiken, the regional public transport organisation in Scania (Sweden), operate 49 X61 trainsets, delivered between 2009-2011. An additional 20 trainsets were ordered in 2011 and in 2017 further 30 trainsets were ordered. The X61 is based on the SL X60, but with four cars per set instead of six and a total length of 75 m, and are operated both as single trainsets and as longer trains made up of two connected four-car trainsets. It is also possible to use three connected four-car trainsets to get even longer trains. The interior of the X61 is better suited for the often longer distances covered by regional trains, with toilets which the SL X60 commuter trains do not have, and more comfortable seats.

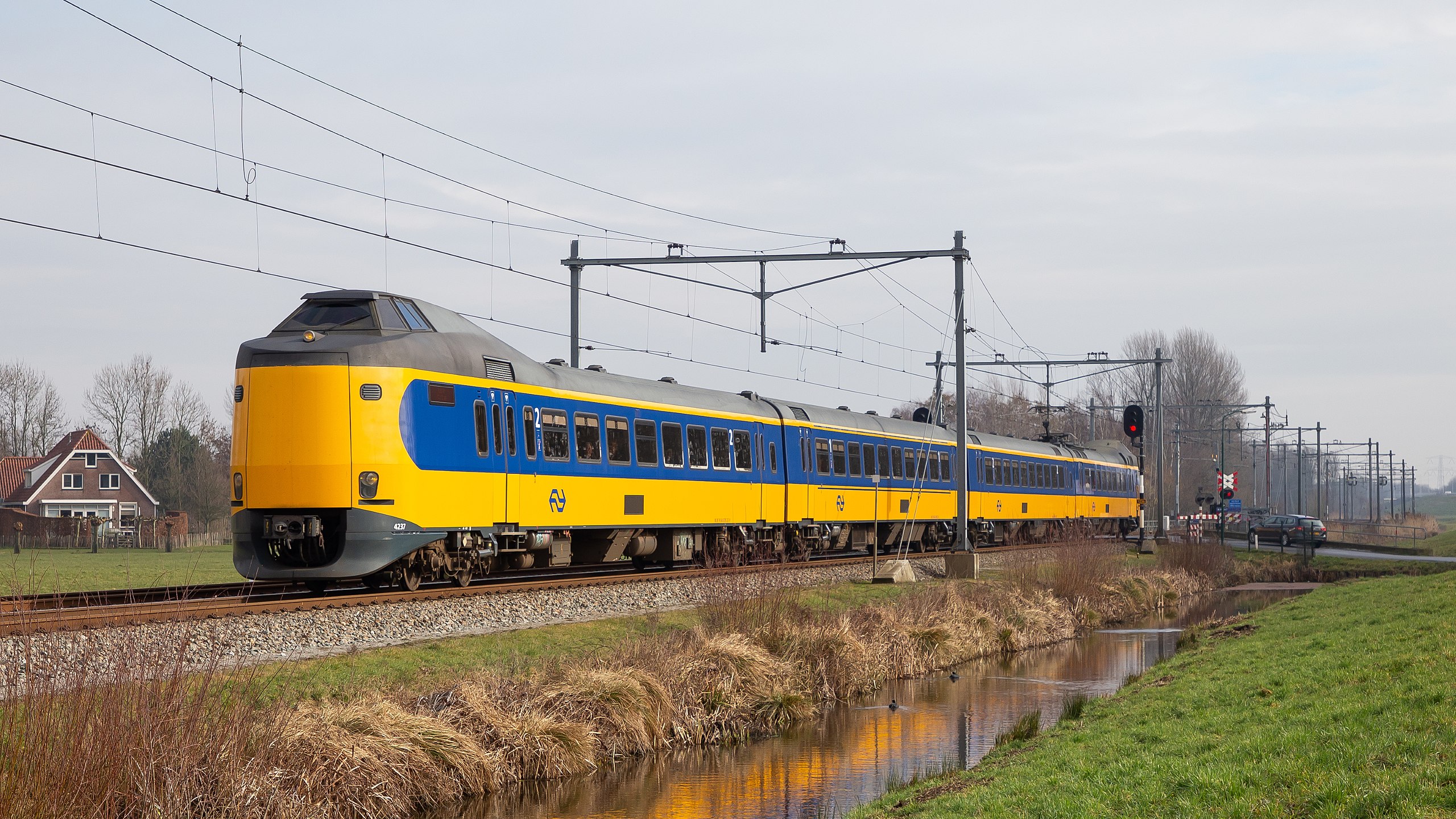

ICMm

Client: NS (Dutch Railways)
Description: Refurbishment Single Deck Intercity Trains – Holland
Project start: 2003
Number of cars: 461
Scope of supply: intercommunication doors, vestibule area, partitions

Project description:

The Intercity Materieel or ICM (English – Intercity Material or Intercity Rolling Stock) is an electric multiple unit (EMU) train type operated by the Nederlandse Spoorwegen in the Netherlands. The train got the nickname Koploper, because it had a so-called “walk through head”. After these trains were modernised, the “walk through heads” were removed. The modernised train sets are referred to as Intercity Materieel Modern (ICMm).

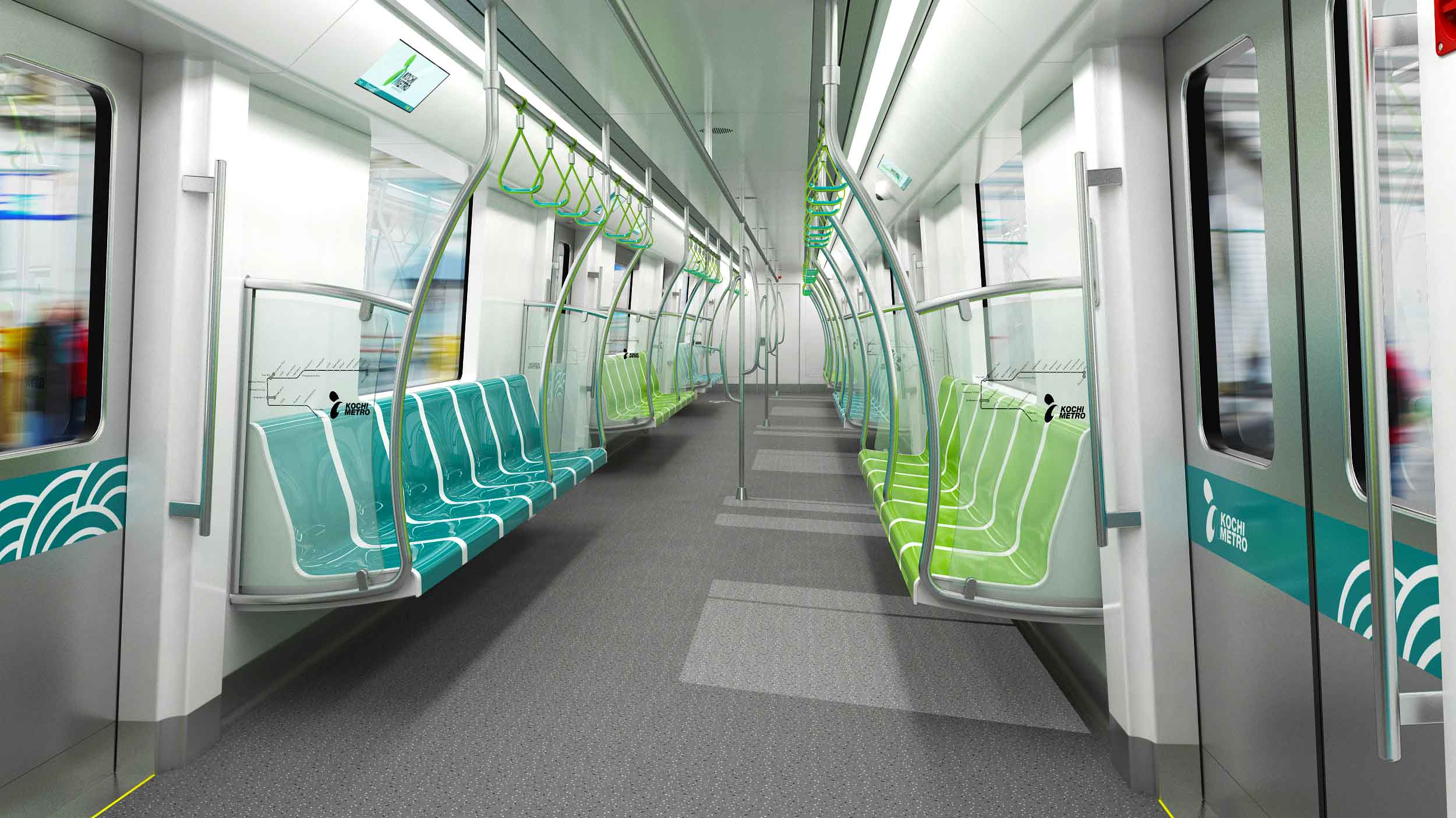

ROPOLIS CHENNAI - KOCHI

Client: ALSTOM TRANSPORTATION SA
Description: Metro cars – Municipality Chennai & Kochi
Project start: 2014
Number of trainsets: 52 + 25
Number of cars: 616
Scope of supply: doors drivers cab

Project description:

With its extensive track record, large range of configurations, low lifecycle costs and keen focus on the passenger experience, the Alstom Metropolis is a standard setter in reliable and attractive metro trains.

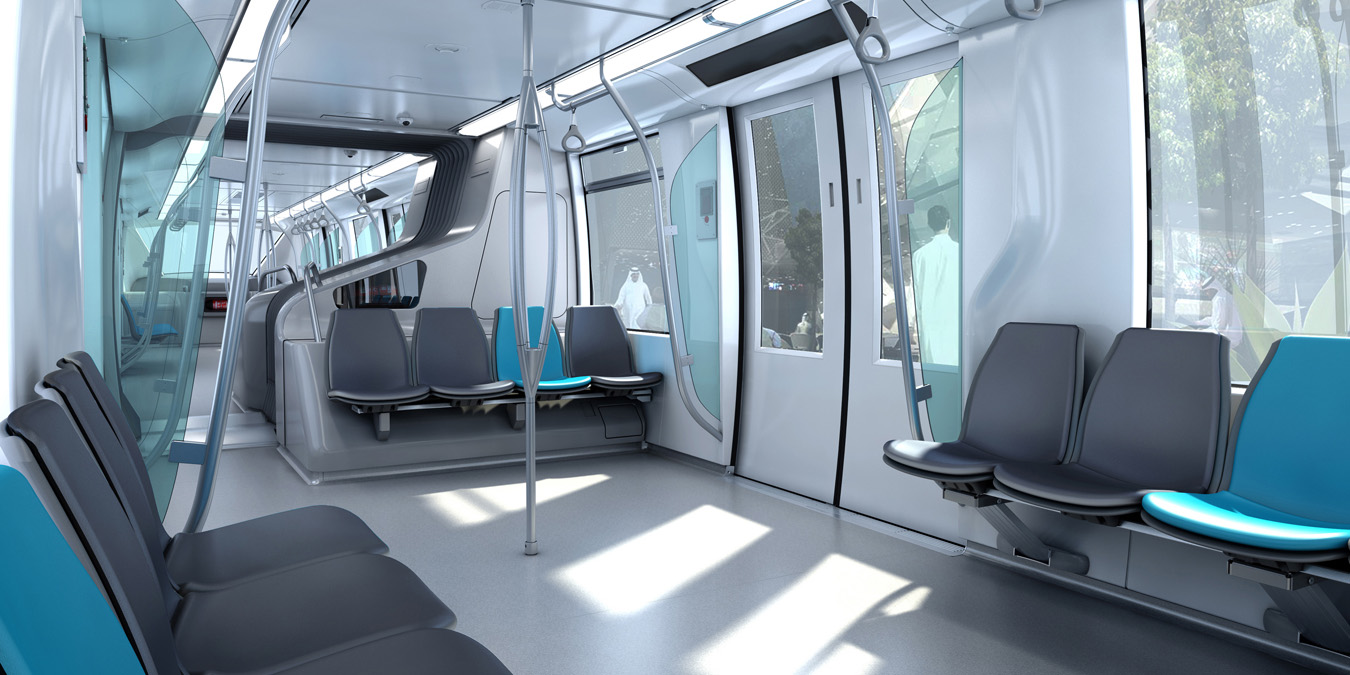

INNOVIA 300

Client: ALSTOM TRANSPORTION
Description: Magnetic trains – Sao Paolo (Brazil) and KAFD (Saudi Arabia)
Project start: 2012
Number of trainsets: 54 7-car + 6 2-car
Number of cars: 390
Scope of supply: complete ceiling assembly

Project description:

From dense inner-city routes to airport links, monorails transform urban areas. Fast and cost-effective to build, the driverless INNOVIA monorail 300 system offers comfortable mass-transit capacity with iconic aesthetics. Sleek vehicles run on slender guidebeams, seamlessly integrated into urban environments.

RGV HIGH SPEED

Client: ALSTOM TRANSPORTION SA
Description: Double deck high speed trains – SNCF (French Railways)
Project start: 2010
Number of trainsets: 110
Number of cars: 1100
Scope of supply: vestibule cladding and internal doors

Project description:

The Alstom Avelia Euroduplex, more commonly known as just Euroduplex, is a high-speed double decker electric multiple unit train manufactured by Alstom.It is primarily operated by the French national railway company SNCF, and also in operation with the Moroccan national railway company ONCF. It is the 3rd generation of the TGV Duplex.

The Euroduplex trains are interoperable, containing equipment allowing them to travel between several European continental countries with various types of electrification and signalling systems such as France, Germany, Switzerland, Spain and Luxembourg. A Moroccan variation is the first high speed train to operate in Africa.

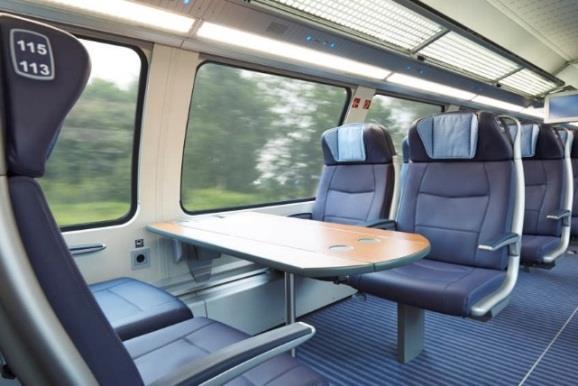

DOSTO

Client: ALSTOM TRANSPORTATION
Description: Double Deck Coaches – DB (Deutsche Bahn)
Project start: 2010
Number of cars: 800
Scope of supply: cladding toilets and gangways, ceilings

Project description:

In 2008 Alstom presented the “Dosto 2010” future family of double-deck trains for the German market. For international sales they were branded as Alstom TWINDEXX with a “Vario” concept that allows these trains to be built for regional or intercity connections up to 160 km/h. The high-speed rail versions are named Bombardier TWINDEXX Express allowing up to 230 km/h. A tilting variant of the Twindexx is developed for the Swiss railway named Alstom TWINDEXX Swiss Express. Orders have been placed in the range of a few hundred coaches of the different variants with their initial delivery expected to be during 2015.

Projects

SBB TWINDEXX | 2012

In 2010 The Swiss Federal Railways (SBB) awarded Alstom the largest rolling stock order in the train builder’s history: 62 Twindexx double-decker trains to serve the routes between Geneva-Lausanne and Lausanne-Bern. The contract includes options for more than 100 additional Twindexx trains.

CORADIA X61 | 2009

X61 is the name of the Alstom Coradia Nordic railcar which was ordered by Skånetrafiken, the regional public transport organisation in Scania (Sweden), operate 49 X61 trainsets, delivered between 2009-2011. An additional 20 trainsets were ordered in 2011 and in 2017 further 30 trainsets were ordered. The X61 is based on the SL X60, but with four cars per set instead of six and a total length of 75 m, and are operated both as single trainsets and as longer trains made up of two connected four-car trainsets. It is also possible to use three connected four-car trainsets to get even longer trains. The interior of the X61 is better suited for the often longer distances covered by regional trains, with toilets which the SL X60 commuter trains do not have, and more comfortable seats.

ICMm | 2003

The Intercity Materieel or ICM (English – Intercity Material or Intercity Rolling Stock) is an electric multiple unit (EMU) train type operated by the Nederlandse Spoorwegen in the Netherlands. The train got the nickname Koploper, because it had a so-called “walk through head”. After these trains were modernised, the “walk through heads” were removed. The modernised train sets are referred to as Intercity Materieel Modern (ICMm).

ROPOLIS CHENNAI - KOCHI | 2014

With its extensive track record, large range of configurations, low lifecycle costs and keen focus on the passenger experience, the Alstom Metropolis is a standard setter in reliable and attractive metro trains.

INNOVIA 300 | 2012

From dense inner-city routes to airport links, monorails transform urban areas. Fast and cost-effective to build, the driverless INNOVIA monorail 300 system offers comfortable mass-transit capacity with iconic aesthetics. Sleek vehicles run on slender guidebeams, seamlessly integrated into urban environments.

RGV HIGH SPEED | 2010

The Alstom Avelia Euroduplex, more commonly known as just Euroduplex, is a high-speed double decker electric multiple unit train manufactured by Alstom. It is primarily operated by the French national railway company SNCF, and also in operation with the Moroccan national railway company ONCF. It is the 3rd generation of the TGV Duplex.

The Euroduplex trains are interoperable, containing equipment allowing them to travel between several European continental countries with various types of electrification and signalling systems such as France, Germany, Switzerland, Spain and Luxembourg. A Moroccan variation is the first high speed train to operate in Africa.

DOSTO | 2010

In 2008 Alstom presented the “Dosto 2010” future family of double-deck trains for the German market. For international sales they were branded as Alstom TWINDEXX with a “Vario” concept that allows these trains to be built for regional or intercity connections up to 160 km/h. The high-speed rail versions are named Alstom TWINDEXX Express allowing up to 230 km/h. A tilting variant of the Twindexx is developed for the Swiss railway named Alstom TWINDEXX Swiss Express. Orders have been placed in the range of a few hundred coaches of the different variants with their initial delivery expected to be during 2015.

Projects

SBB TWINDEXX | 2012

In 2010 The Swiss Federal Railways (SBB) awarded Alstom the largest rolling stock order in the train builder’s history: 62 Twindexx double-decker trains to serve the routes between Geneva-Lausanne and Lausanne-Bern. The contract includes options for more than 100 additional Twindexx trains.

CORADIA X61 | 2009

X61 is the name of the Alstom Coradia Nordic railcar which was ordered by Skånetrafiken, the regional public transport organisation in Scania (Sweden), operate 49 X61 trainsets, delivered between 2009-2011. An additional 20 trainsets were ordered in 2011 and in 2017 further 30 trainsets were ordered. The X61 is based on the SL X60, but with four cars per set instead of six and a total length of 75 m, and are operated both as single trainsets and as longer trains made up of two connected four-car trainsets. It is also possible to use three connected four-car trainsets to get even longer trains. The interior of the X61 is better suited for the often longer distances covered by regional trains, with toilets which the SL X60 commuter trains do not have, and more comfortable seats.

ICMm | 2003

The Intercity Materieel or ICM (English – Intercity Material or Intercity Rolling Stock) is an electric multiple unit (EMU) train type operated by the Nederlandse Spoorwegen in the Netherlands. The train got the nickname Koploper, because it had a so-called “walk through head”. After these trains were modernised, the “walk through heads” were removed. The modernised train sets are referred to as Intercity Materieel Modern (ICMm).

ROPOLIS CHENNAI - KOCHI | 2014

With its extensive track record, large range of configurations, low lifecycle costs and keen focus on the passenger experience, the Alstom Metropolis is a standard setter in reliable and attractive metro trains.

RGV HIGH SPEED | 2010

The Alstom Avelia Euroduplex, more commonly known as just Euroduplex, is a high-speed double decker electric multiple unit train manufactured by Alstom. It is primarily operated by the French national railway company SNCF, and also in operation with the Moroccan national railway company ONCF. It is the 3rd generation of the TGV Duplex.

The Euroduplex trains are interoperable, containing equipment allowing them to travel between several European continental countries with various types of electrification and signalling systems such as France, Germany, Switzerland, Spain and Luxembourg. A Moroccan variation is the first high speed train to operate in Africa.

DOSTO | 2010

In 2008 Alstom presented the “Dosto 2010” future family of double-deck trains for the German market. For international sales they were branded as Alstom TWINDEXX with a “Vario” concept that allows these trains to be built for regional or intercity connections up to 160 km/h. The high-speed rail versions are named Alstom TWINDEXX Express allowing up to 230 km/h. A tilting variant of the Twindexx is developed for the Swiss railway named Alstom TWINDEXX Swiss Express. Orders have been placed in the range of a few hundred coaches of the different variants with their initial delivery expected to be during 2015.

REQUEST A DEMO

Now that you know more about our options, we would like to hear from you. Lets combine our solutions with your creative ideas. Together we can organize a demonstration on site, including finishing samples that you can keep to gain more insight into our products.
